• Blue Sea 1498 - 360 Panel - 8 Position 12V Panel w/Dual USB & 12V Socket
1 1

Blue Sea 1498 - 360 Panel - 8 Position 12V Panel w/Dual USB & 12V Socket

CayStorePart No.: BLUE1498

SKU:1498-BSS
$171.22 USD
$171.22 USD
Sale Sold out
Shipping calculated at checkout.
  • Vendor:

    Blue Sea Systems

  • Type:

    Electrical | Circuit Breakers,Electrical | Electrical Panels

Description

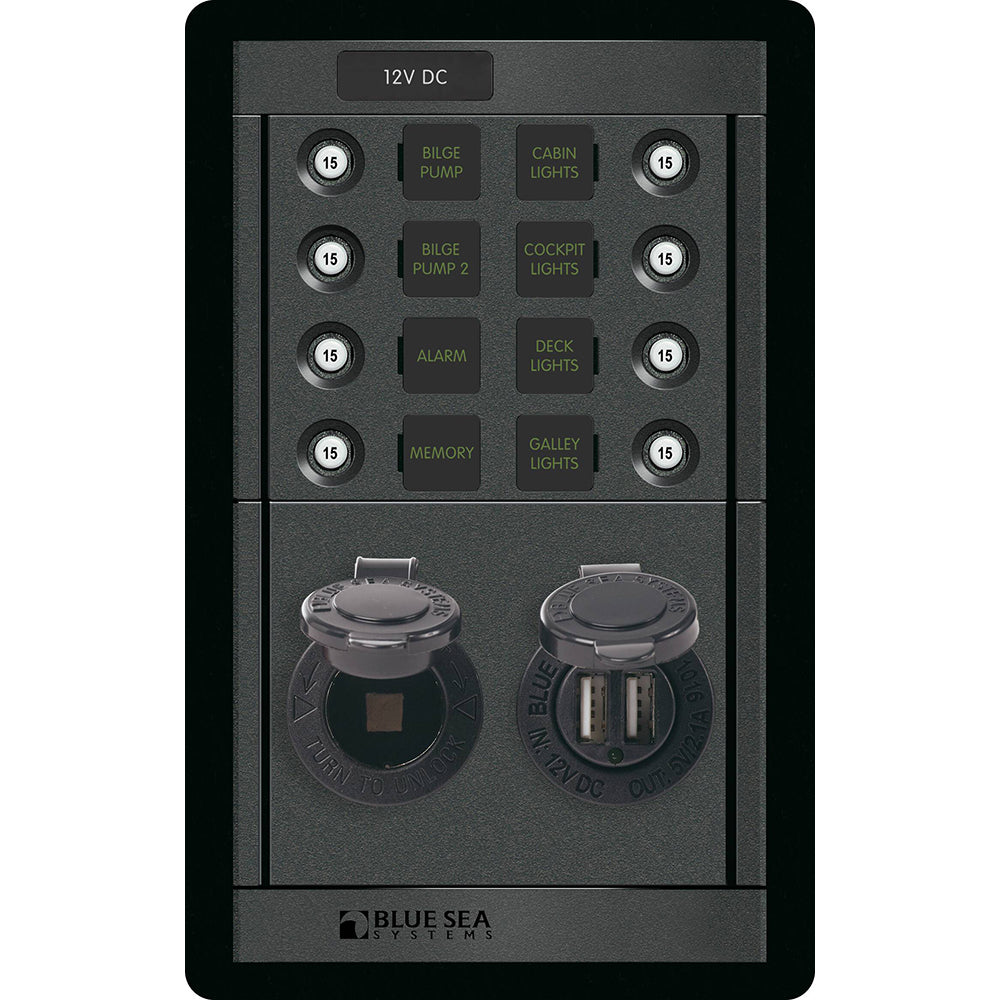

1498 - 360 Panel - 8 Position 12V Panel with Dual USB & 12V Socket

Part of the Blue Sea Systems Battery Management Panels.  This DC Branch Circuit Breaker panel will distribute current from a high amperage source to lower amperage circuits.

DC sockets and USB charging are integrated into a popular sized circuit protection panel.

Features:

  • ON-indicating LEDs
  • Backlit label positions

Technical Specifications:

  • Positions - Eight (8)
  • Nominal Voltage - 12V DC
  • Maximum Amperage - 90A
  • Circuit Breaker Type - 8 Push Button (15A)
  • USB Output - 12/24V Dual USB
  • Socket Output - 12V Dash socket
  • Dimensions - (H x W x D) - 7.75" x 4.88" x 3.5" (197 x 124 x 89mm)

In the Box:

  • 1498 Panel
  • Instruction Manual

*Sold as an Individual

  • SHIPPING

    Free shipping within continental USA

Product Literature

BrochureUser manual
Installation ManualAdditional Information
