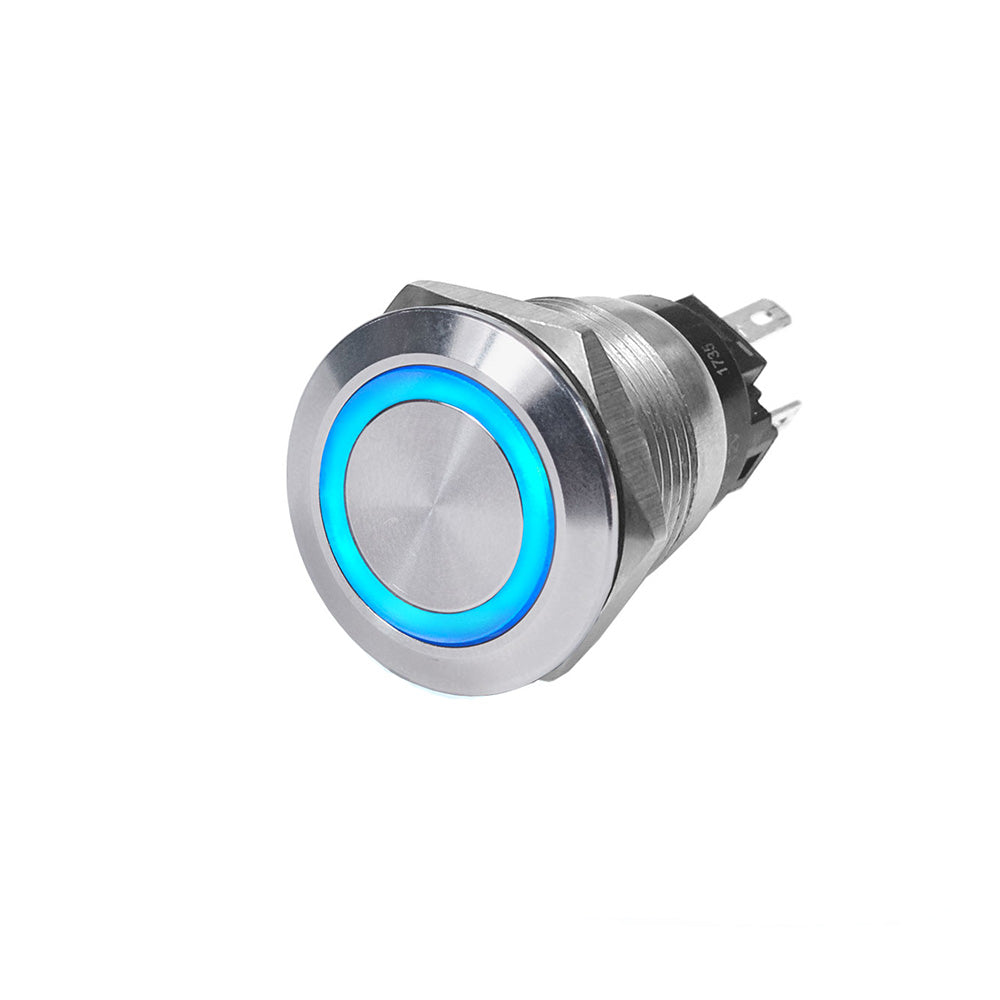

• Blue Sea 4160 SS Push Button Switch - Off-On - Blue - 10A
1 1

Blue Sea 4160 SS Push Button Switch - Off-On - Blue - 10A

CayStorePart No.: BLUE4160

SKU:4160-BSS
$22.46 USD
$22.46 USD
Sale Sold out
Shipping calculated at checkout.
  • Vendor:

    Blue Sea Systems

  • Type:

    Electrical | Switches & Accessories

Description

4160 SS Push Button Switch - Off-On - Blue - 10A

  • 10A continuous
  • Single Pole Double Throw or Single Pole Single Throw
  • Can be wired for normally open or normally closed
  • Installs with .110inch quick connects (included in retail package)

Specifications

  • Action: OFF-ON
  • Amperage: 10A @ 12V DC
  • Nominal Voltage: 12V DC
  • Maximum LED Operating Current: 20mA
  • Minimum Operating Temperature: -10° C
  • Maximum Operating Temperature: 70° C
  • Minimum Storage Temperature: -55° C
  • Maximum Storage Temperature: 85° C
  • Illumination: Independent – Separate contacts for LED power
  • Mounting Hole: 19mm
  • Switching Cycles: 18,000
  • Termination: 5 – 0.110inch Quick Connect terminals
