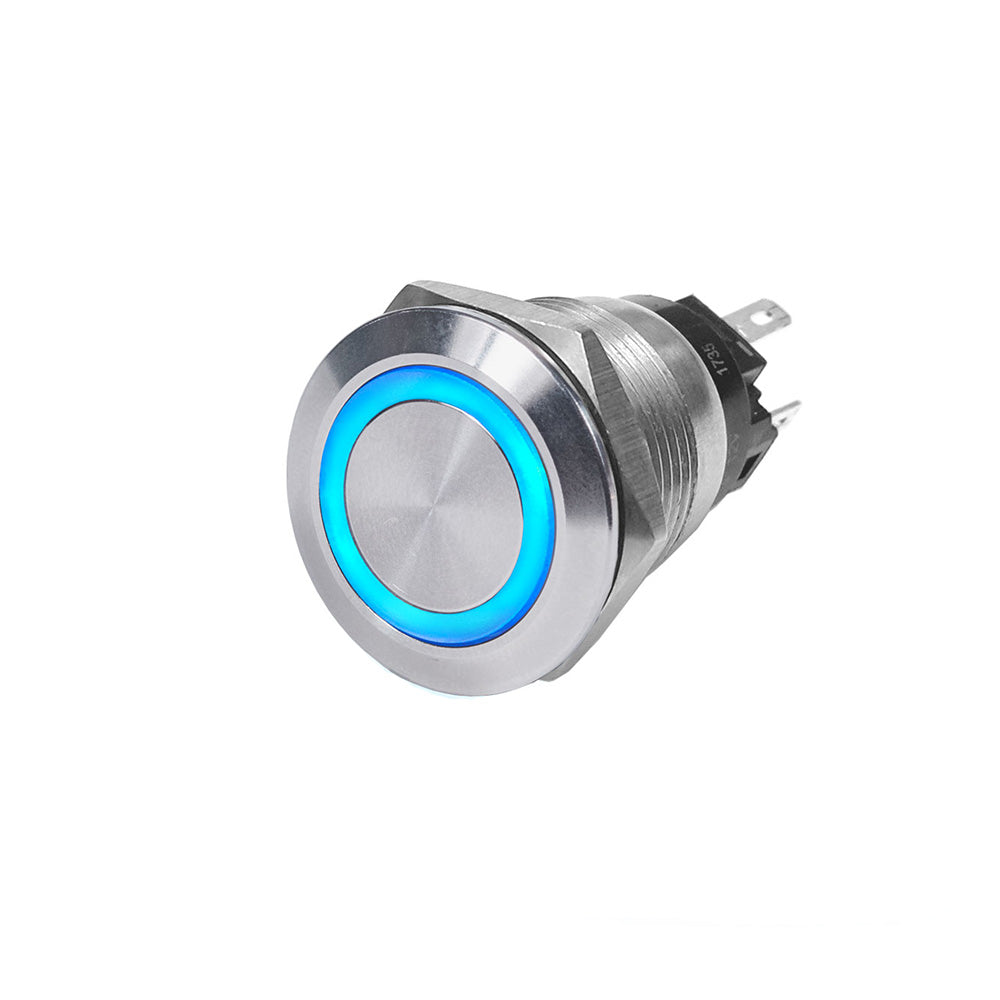

Blue Sea 4161 SS Push Button Switch - Off-(On) - Blue - 10A
CayStorePart No.: BLUE4161
SKU:4161-BSS
Regular price
$22.46 USD
Sale price
$22.46 USD
Regular price
Unit price
per
Sale
Sold out
Shipping calculated at checkout.
Couldn't load pickup availability
Description
4161 SS Push Button Switch - Off-(On) - Blue - 10A
- 10A continuous
- Single Pole Double Throw or Single Pole Single Throw
- Can be wired for normally open or normally closed
- Installs with .110inch quick connects (included in retail package)
Specifications
- Action: OFF-(ON)
- Amperage: 10A @ 12V DC
- Nominal Voltage: 12V DC
- Maximum LED Operating Current: 20mA
- Minimum Operating Temperature: -10° C
- Maximum Operating Temperature: 70° C
- Minimum Storage Temperature: -55° C
- Maximum Storage Temperature: 85° C
- Illumination: Independent – Separate contacts for LED power
- Mounting Hole: 19mm
- Switching Cycles: 18,000
- Termination: 5 – 0.110inch Quick Connect terminals
