• Blue Sea 4181 Backlit Push Button Switch OFF/(ON) - 15A
1 1

Blue Sea 4181 Backlit Push Button Switch OFF/(ON) - 15A

CayStorePart No.: BLUE4181

SKU:4181-BSS
$60.33 USD
$60.33 USD
Sale Sold out
Shipping calculated at checkout.
  • Vendor:

    Blue Sea Systems

  • Type:

    Electrical | Switches & Accessories

Description

4181 Backlit Push Button Switch OFF/(ON) - 15A

Features:

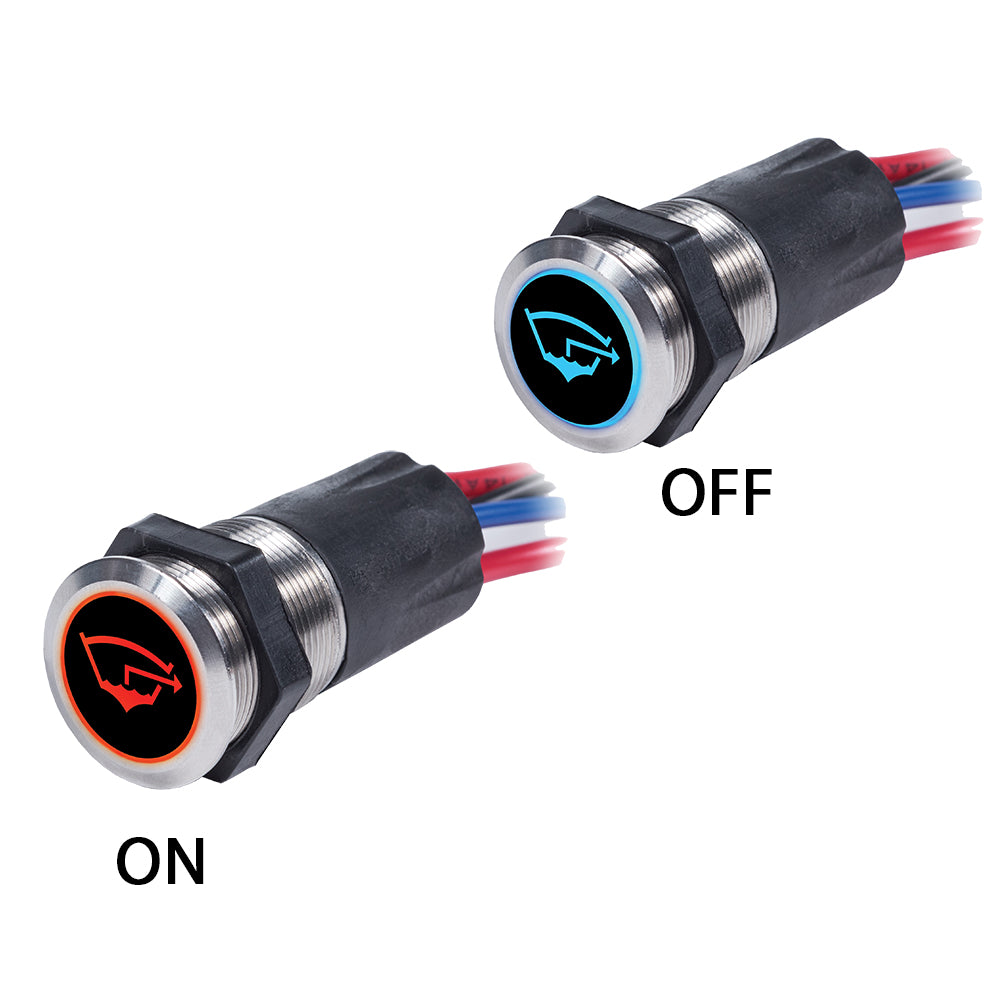

  • Backlit button is blue when OFF and red when ON
  • Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
  • Additional 50 ICON label kit sold separately

Specifications:

  • Action: OFF-(ON)
  • Amperage: 15A @ 12V DC
  • Nominal Voltage: 12V DC
  • Maximum Voltage: 15V DC
  • Maximum LED Operating Current: 20mA
  • Switching Cycles: 10,000
  • Temperature Range: -20°C to 55°C
  • Termination: 3" - Bare Wire Pigtail
  • Wire Size: Black & Blue Wires 18 AWG / Red & Red/White Wires 14AWG
  • SHIPPING

    Free shipping within continental USA

Product Literature

BrochureUser manual
Installation ManualAdditional Information
