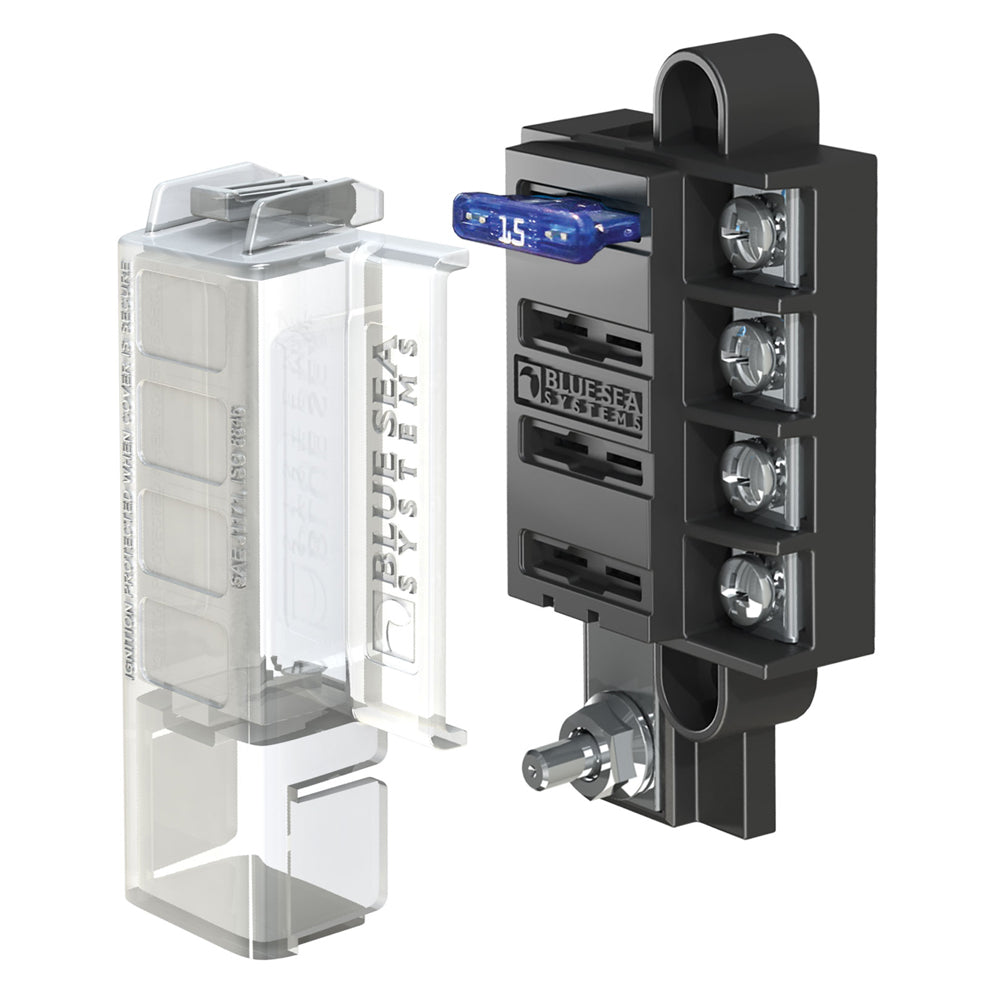

Blue Sea 5045 ST Blade Compact Fuse Blocks - 4 Circuits w/Cover
CayStorePart No.: XLUE5045
SKU:5045-BSS
Regular price
$28.52 USD
Sale price
$28.52 USD
Regular price
Unit price
/
per
Sale
Sold out
-
Vendor:
Blue Sea Systems
-
Type:
Electrical | Fuse Blocks & Fuses
Description
ST Blade Compact Fuse Blocks - 4 Circuits w/CoverProvides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.
- Compact common source fuse block
- Accepts ATO® and ATC® fast acting blade fuses
- Single side entry wiring
- Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Small format standard and custom labels available
Specifications
-
Circuits:4
-
Maximum Amperage: 100A per block / 30A per circuit
-
Maximum Voltage:32V DC
-
Mounting: #8 Screw (M4)
- Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)
-
SHIPPING
Free shipping within continental USA
