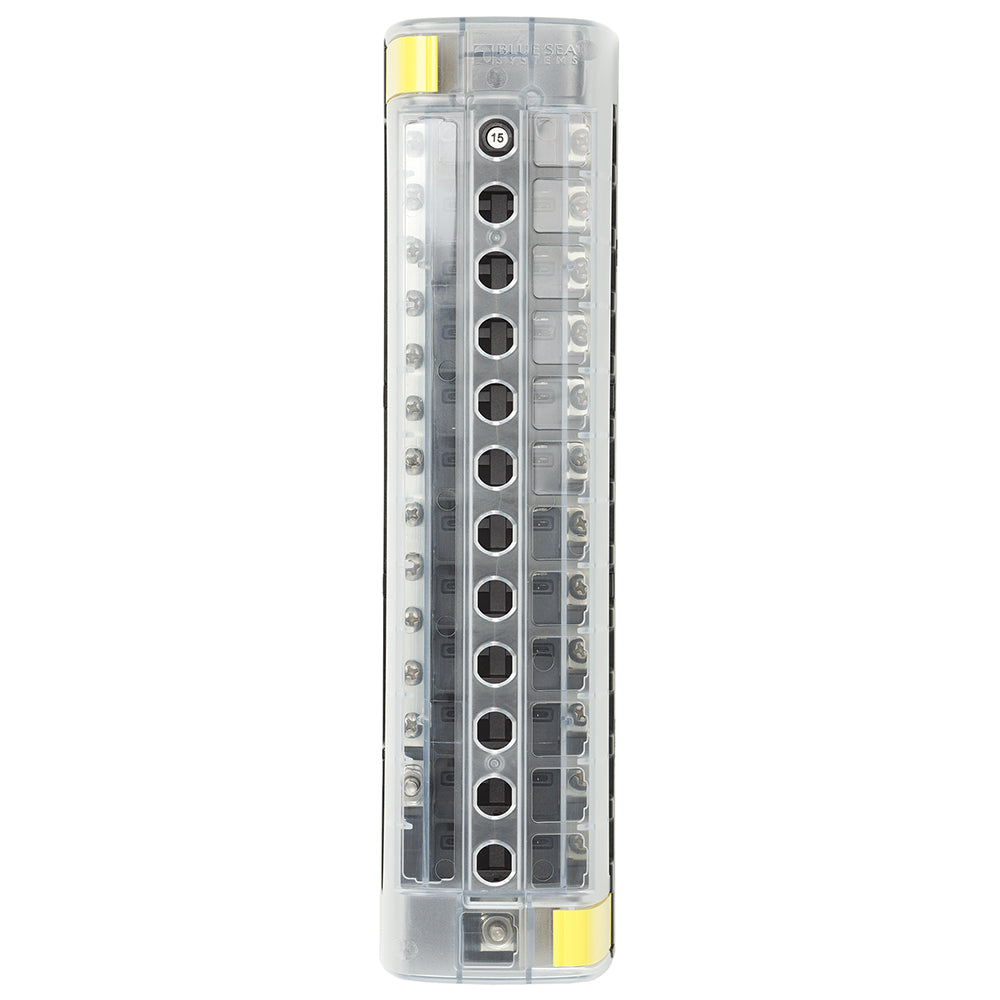

Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus

CayStorePart No.: BLUE5054

SKU:5054-BSS
Regular price $100.06 USD
Sale price $100.06 USD Regular price
Sale Sold out
Shipping calculated at checkout.
  • Vendor:

    Blue Sea Systems

  • Type:

    Electrical | Circuit Breakers

Description

ST CLB Circuit Breaker Block - 12 Position w/Negative Bus

Features
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals

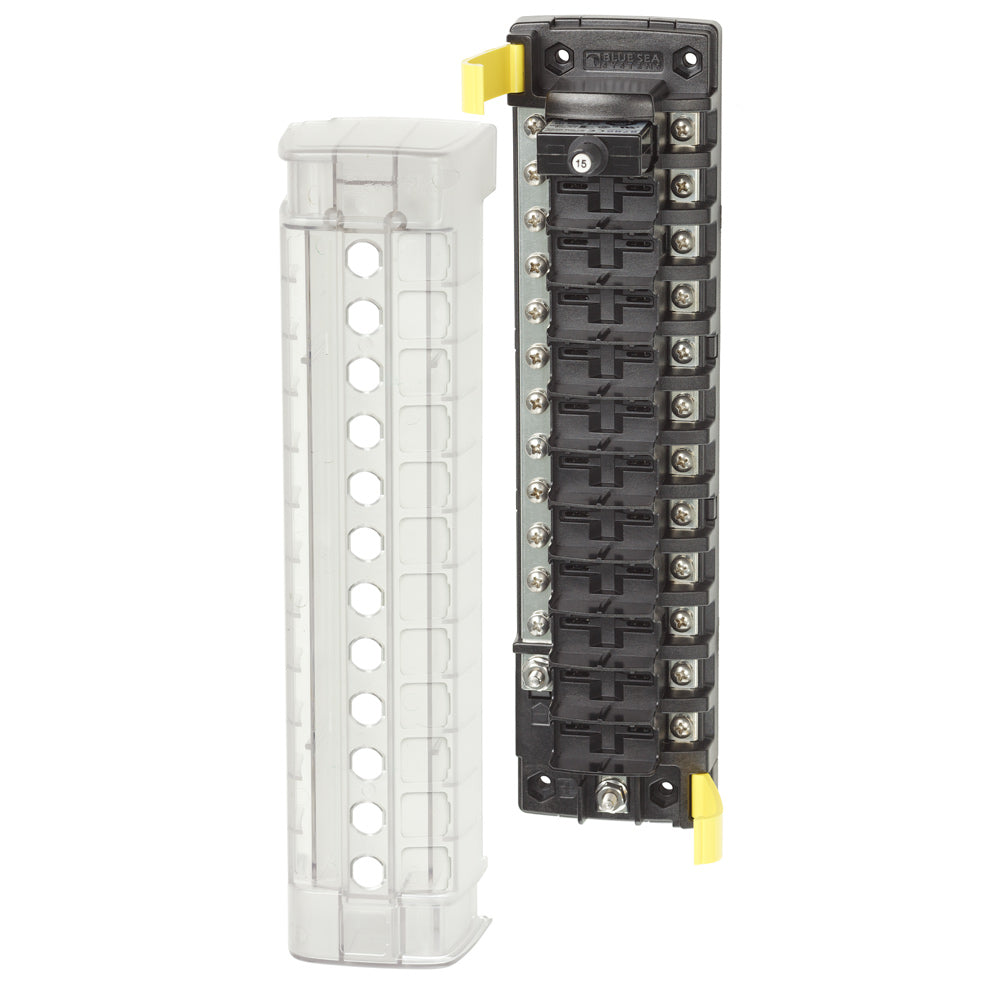

  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals

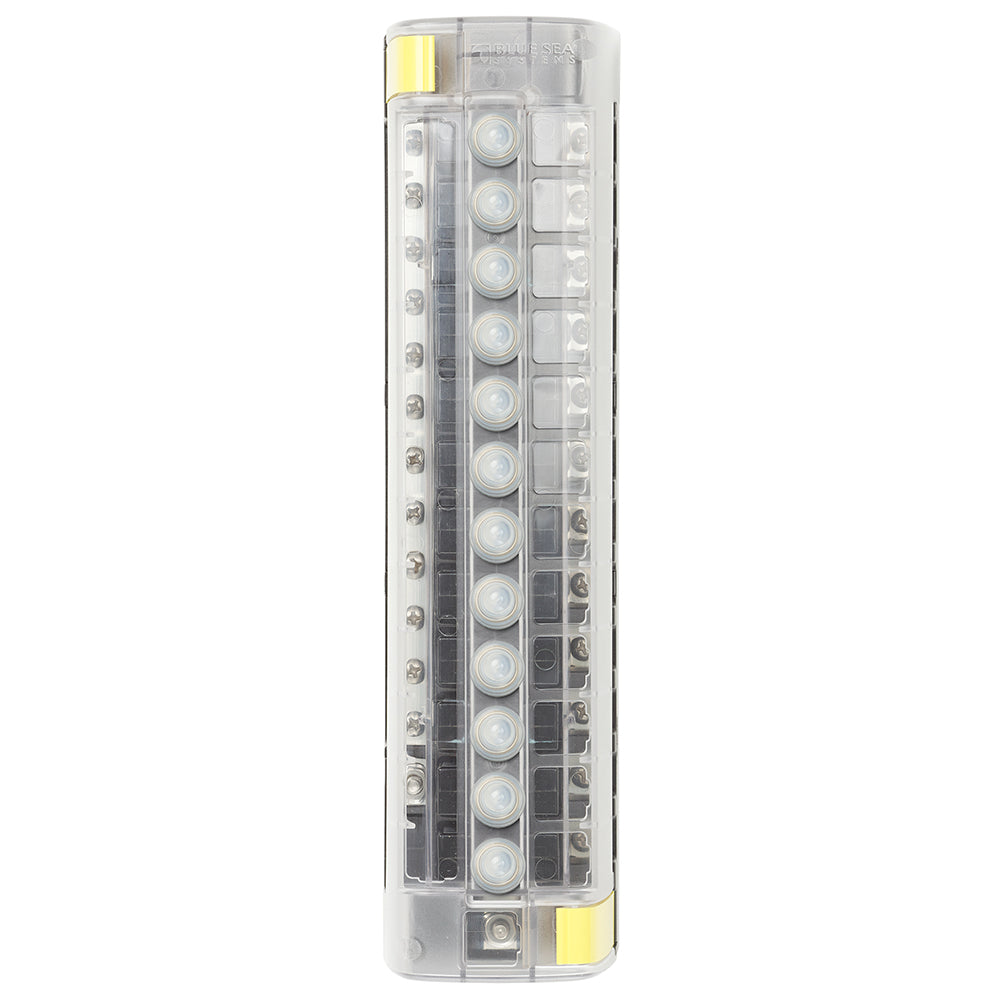

  • Optional push button waterproof boots or dress nuts can be installed over cover


Specifications:
Circuits: 12
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 10.13"(257.3 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 1.50lb (0.68 kg)
