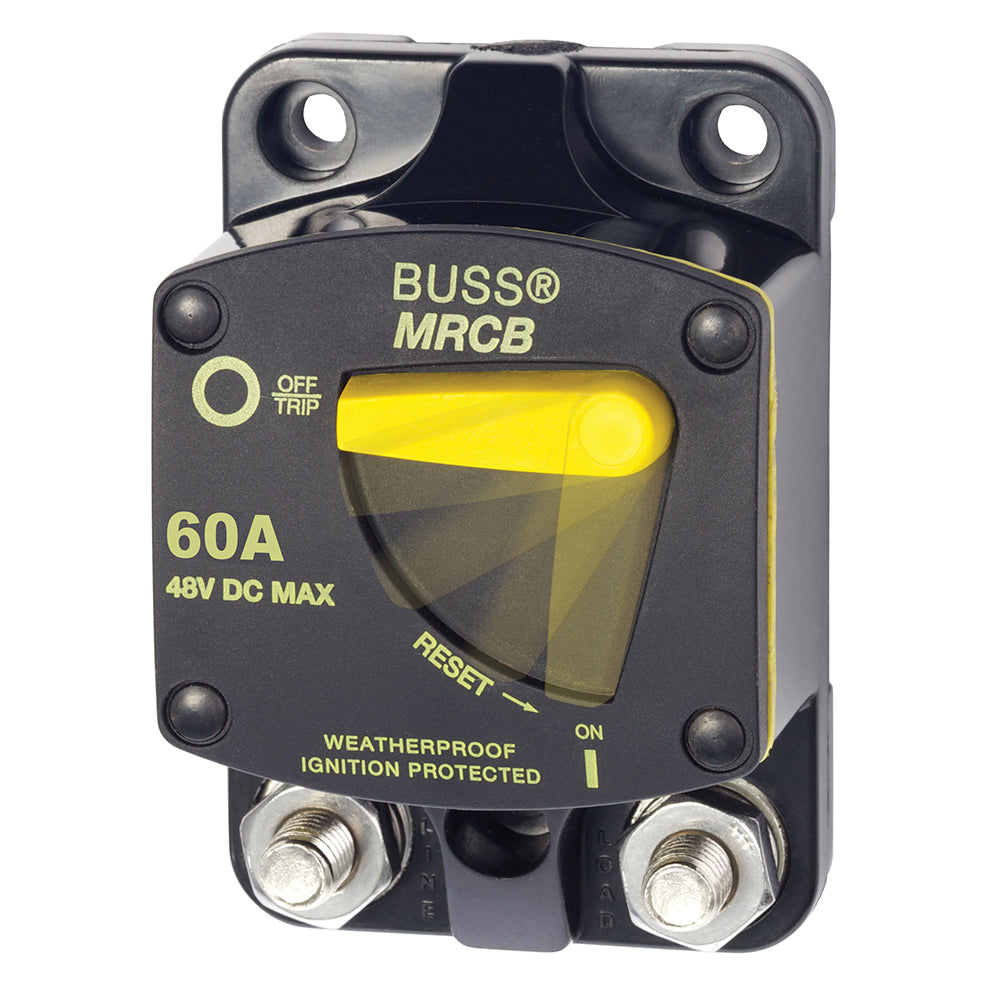

Blue Sea 7140 187 - Series Thermal Circuit Breaker - 60Amp
CayStorePart No.: XLUE7140
SKU:7140-BSS
Regular price
$77.76 USD
Sale price
$77.76 USD
Regular price
Unit price
/
per
Sale
Sold out
-
Vendor:
Blue Sea Systems
-
Type:
Electrical | Circuit Breakers
Description
187 - Series Thermal Circuit Breakers - Surface Mount60 Amp Circuit Breaker
PN: 7140
Features:
- Combines switching and circuit protection into a single device
- All components meet SAE J1171 external ignition protection requirements
- Clear, single lever operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Large clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition protected - safe for installation aboard gasoline powered boats
Specifications | |
Circuit Breaker Class: | Type III - Switchable / Manual Reset - Trip Free |
Type: | Thermally Responsive Bi-Metal Blade |
Case Material: | Thermoset Polyester |
Voltage Rating: | 48 Volts DC Maximum |
Interrupt Rating: | 5,000 Amperes @12 Volts DC |
3,000 Amperes @24 Volts DC | |
1,500 Amperes @42 Volts DC | |
Operating Temperature Range: | -25C° to +82C° |
-
