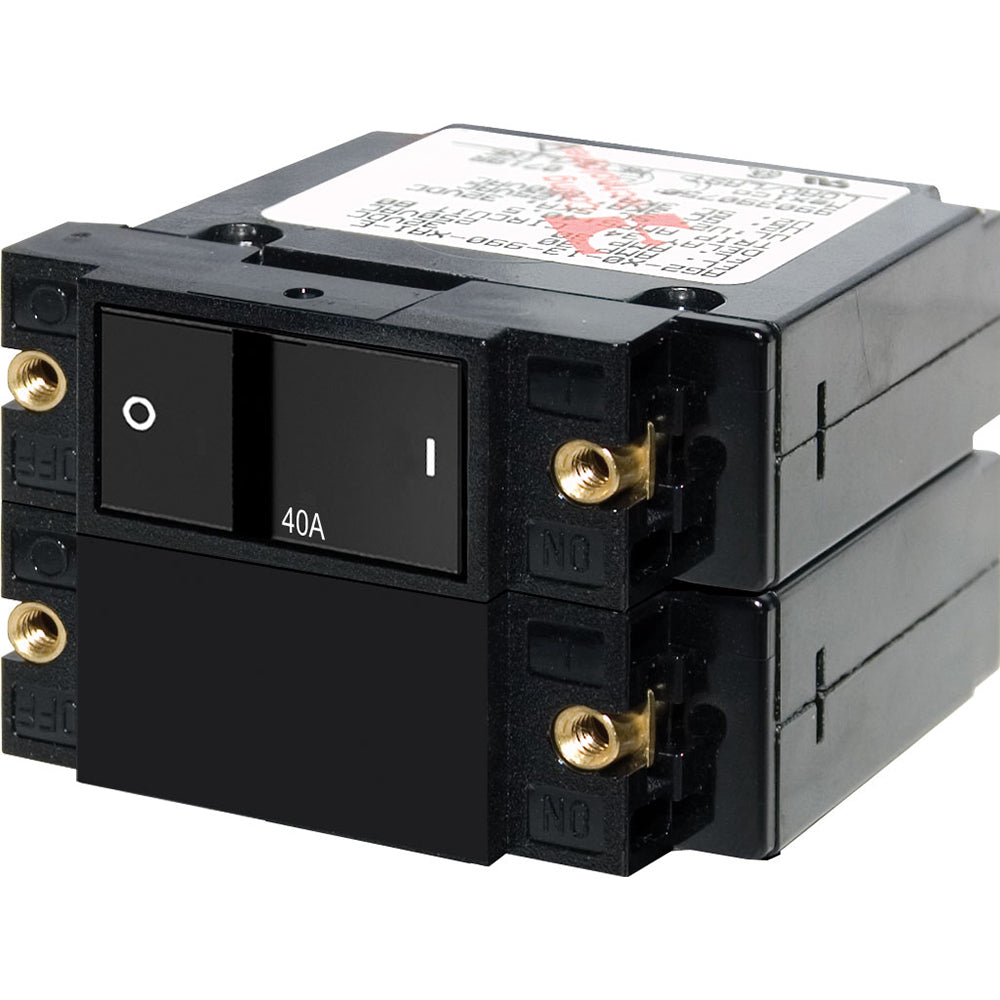

• Blue Sea 7416 A-Series Flat Rocker Circuit Breaker - Double Pole - 40A
1 1

Blue Sea 7416 A-Series Flat Rocker Circuit Breaker - Double Pole - 40A

CayStorePart No.: BLUE7416

SKU:7416-BSS
$39.20 USD
$39.20 USD
Sale Sold out
Shipping calculated at checkout.
  • Vendor:

    Blue Sea Systems

  • Type:

    Electrical | Circuit Breakers

Description

A-Series Flat Rocker Circuit Breaker - Double Pole - 40A

Features:
  • Color actuator indicates "OFF" position
  • "Trip Free" design cannot be held "ON" during fault current condition
  • International ON/OFF symbols support vertical or horizontal mounting


Specifications:
  • Amperage : 40A AC / 40A DC
  • Actuator Style: Flat Rocker
  • Poles: 2
  • Maximum Voltage: 120V AC / 240V AC / 32V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Screw Terminal Torque: 14 in-lb (1.58 Nm)
  • Switching Cycles: 10000
  • Terminal Screw: #10-32 Stainless Steel
  • Weight: 0.38lb (0.17 kg)
  • SHIPPING

    Free shipping within continental USA

Product Literature

BrochureUser manual
Installation ManualAdditional Information
