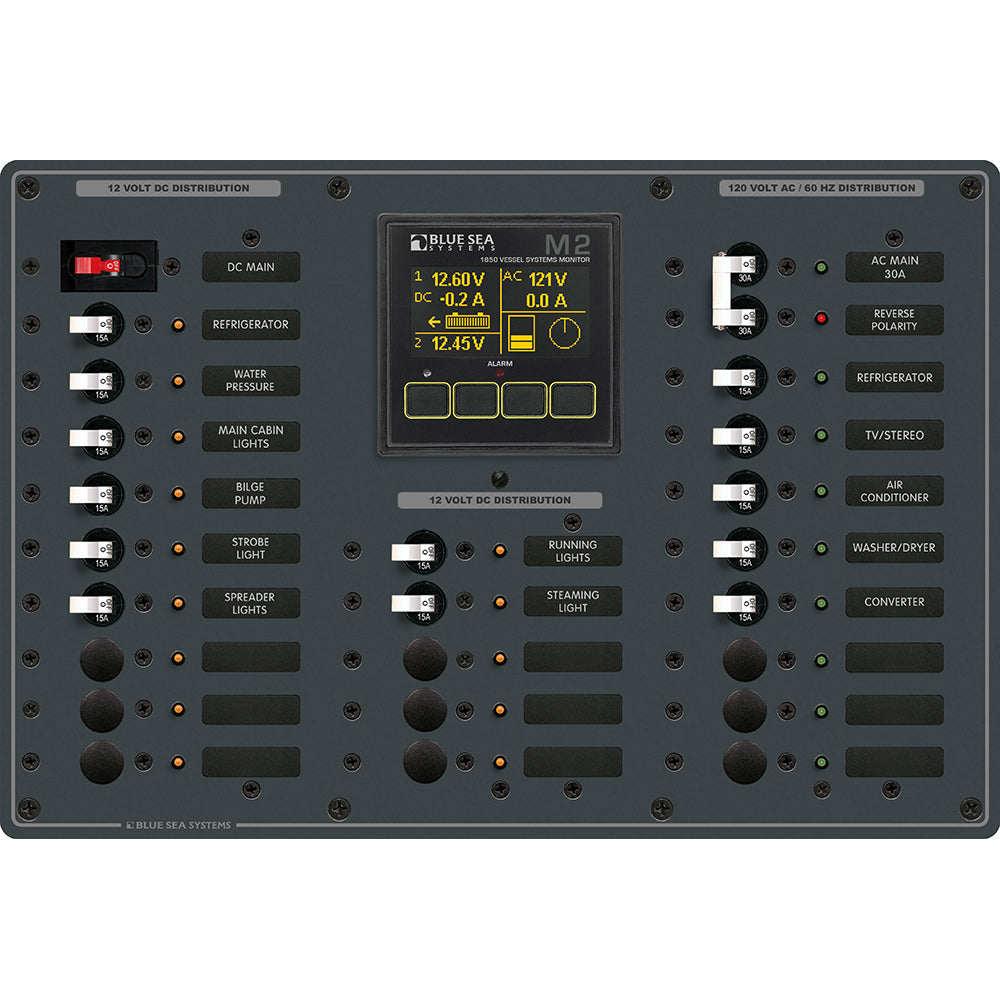

Blue Sea 8413 - Metal AC/DC Panel w/M2 Vessel Systems Monitor & 22 Circuit Breakers (15A)

CayStorePart No.: BLUE8413

SKU:8413-BSS
Regular price $1,172.37 USD
Sale price $1,172.37 USD Regular price
Sale Sold out
Shipping calculated at checkout.
  • Vendor:

    Blue Sea Systems

  • Type:

    Electrical | Electrical Panels

Description

8413 - Metal AC/DC Panel with M2 Vessel Systems Monitor & 22 Circuit Breakers (15A)

Complete AC/DC panel with M2 Vessel Systems Monitor (VSM)  that provides monitoring of AC systems, DC systems, tanks, and bilges in one (1) compact OLED meter with NMEA 2000 connectivity.

Features:

  • ON indicating LEDs installed in all circuit positions
  • Backlit label positions
  • Circuit identification label sets included
  • White toggle circuit breakers match existing traditional panels
  • AC and DC buses installed, fully pre-wired, and ready for installation
  • The panel is marked to comply with ABYC standards
  • Red reverse polarity indicated LED

Technical Specifications:

  • Nominal Voltage - 120V AC and 12/24V DC
  • Positions - 8 AC Positions + Main and 14 DC Positions + Main
  • Meter - M2 Vessel Systems Monitor
  • Dimensions (H x W x D) - 9.25" x 15.77" x 3" (235 x 400.56 x 76.2mm)

In the Box:

  • 8413 Panel
  • Labels
  • Mounting hardware

*Sold as Individual
