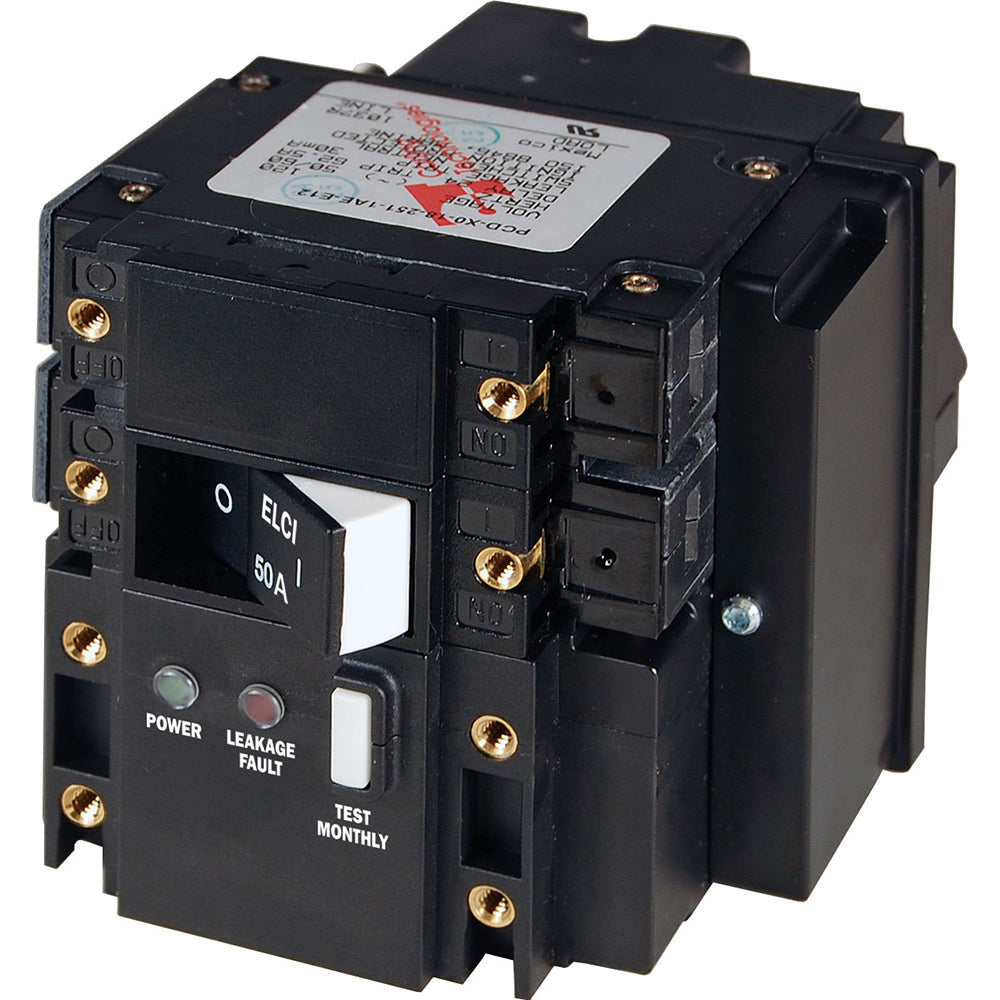

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A

CayStorePart No.: BLUE3103

SKU:3103-BSS
$316.38 USD
$316.38 USD
Sale Sold out
Shipping calculated at checkout.
  • Vendor:

    Blue Sea Systems

  • Type:

    Electrical | Circuit Breakers

Description

C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A

Features:

  • Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
  • Meets UL 1500 external ignition protection requirements
  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel

Specifications:

  • Amperage: 50A
  • Actuator Style: Flat Rocker
  • Poles: 2
  • Ignition Protected: Yes
  • Max Voltage: 120VAC per pole
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature: -35 degrees C
  • Max Operating Temperature: 66 degrees C
  • Leakage Trip Amps: 30mA
