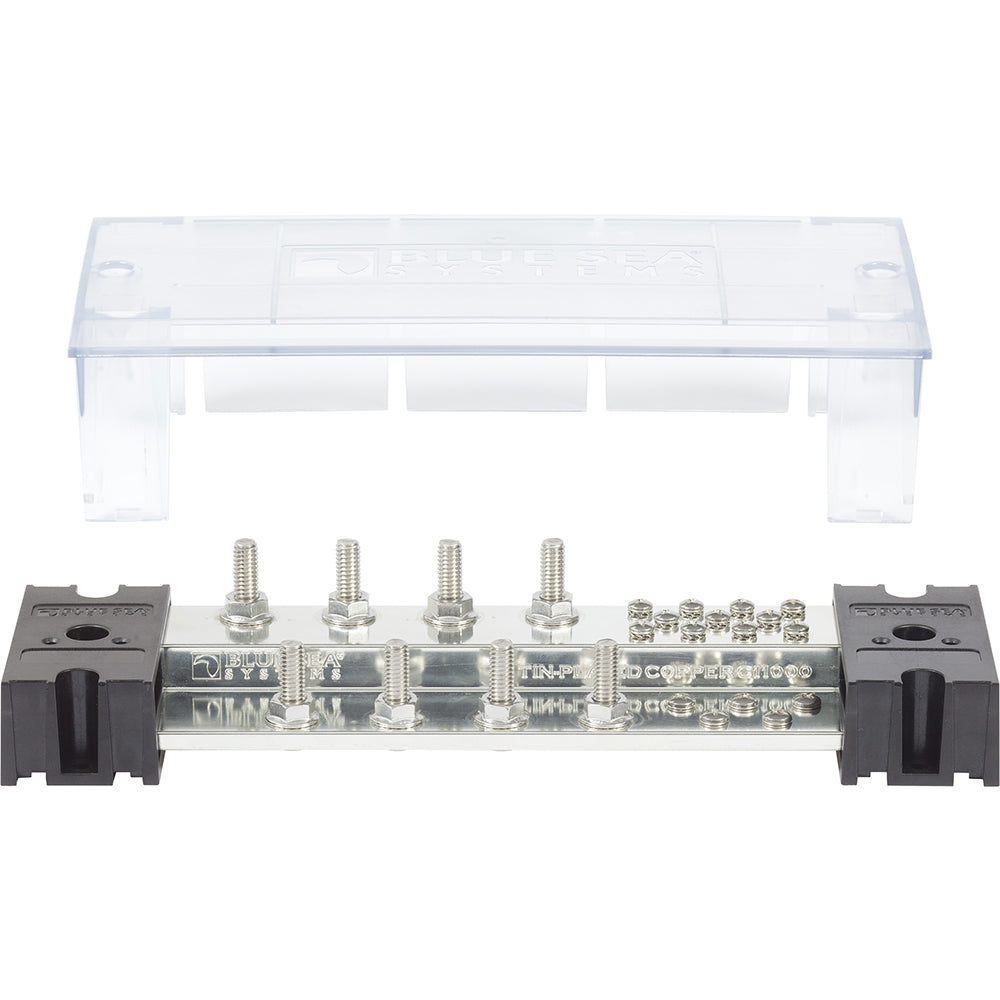

Blue Sea PowerBar 1000 - 8 5/16" Terminal Studs w/Cover

CayStorePart No.: BLUE1992

SKU:1992-BSS
Regular price $176.95 USD
Sale price $176.95 USD Regular price
Sale Sold out
Shipping calculated at checkout.
  • Vendor:

    Blue Sea Systems

  • Type:

    Electrical | Busbars, Connectors & Insulators

Description

PowerBar 1000 - 8 5/16" Terminal Studs w/Cover

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

Features:
  • 1,000 Amp busbar for large complex wiring systems
  • Tin plated pure electrical copper for maximum conductivity
  • Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars
  • Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
  • One-piece serrated flange nuts ensure correct and secure connections
  • Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
  • Busbar may be cut to a shorter length to accommodate constricted spaces
  • Bi-directional busbar end caps allow the ganging of additional busbars
  • Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Specs:
  • Number of Terminal Studs: 8
  • Continuous Rating: 1000A
  • Bus Material: Tin-Plated Copper C11000
  • Mounting Holes: Accepts #10 (M5) Screws
  • Terminal Stud Size: 5/16
