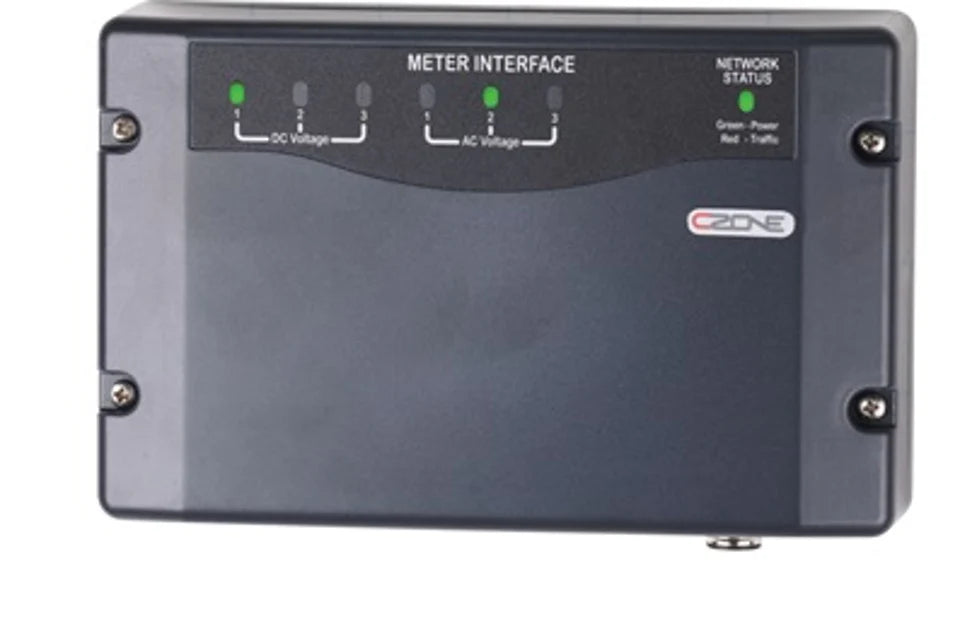

CZone Meter Interface (MI) with Seal & Connector
CayStorePart No.: CZON0050
SKU:80-911-0005-00
Regular price
$404.69 USD
Sale price
$404.69 USD
Regular price
Unit price
per
Sale
Sold out
Shipping calculated at checkout.
Couldn't load pickup availability
Description

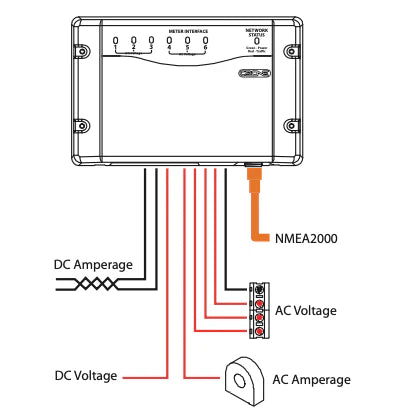

The Meter Interface (MI) accepts inputs from external AC and DC power metering sensors such as: AC and DC voltage and amps, AC kWatts, and DC battery capacity in amp hours and percent remaining. All with user definable high and low alarms
AC: 3 x AC voltage inputs (multi voltage), 2 x AC current inputs, Calculates true RMS power
DC: 3 x DC voltage inputs (multi voltage), 2 x DC current inputs, Calculates battery capacity as ampere hours and percentage charge remaining, Resolution for current metering down to 0.1 A
General: Dimensions, WxHxD: 6-3/32"x3-29/32"x1-5/8" 156x100x42 mm, IPX5 water ingress protection, Outputs standard NMEA2000 power monitoring sentences
