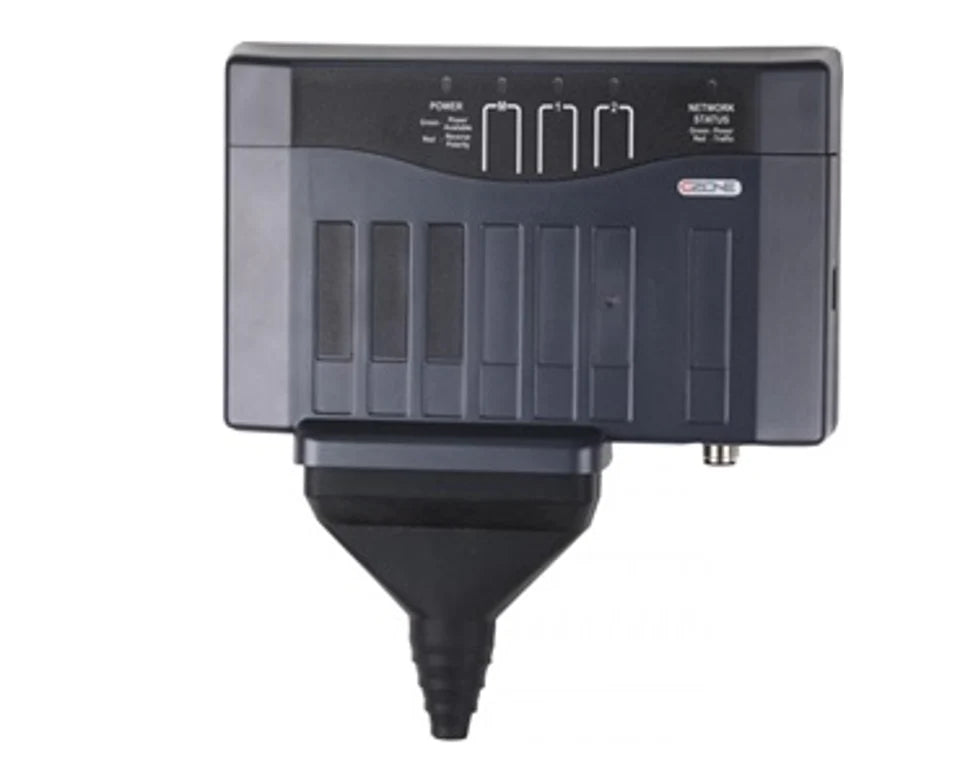

CZone Motor Output Interface (MOI) with Seal & Connector
CayStorePart No.: CZON0070
SKU:80-911-0007-00
Regular price
$558.59 USD
Sale price
$558.59 USD
Regular price
Unit price
per
Sale
Sold out
Shipping calculated at checkout.
Couldn't load pickup availability
Description

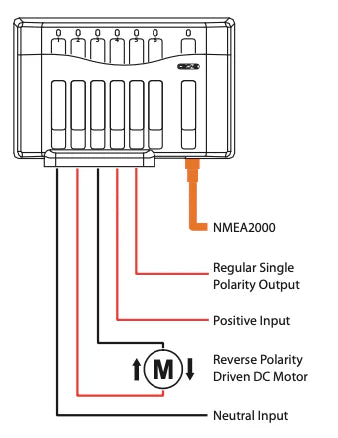

The Motor Output Interface (MOI) has an output pair for controlling DC motors which require a reversal of polarity to change the direction of their mechanical operation. For example, a DC motor for an electric window mechanism will move the window up or down depending on the polarity of the feed to the motor. The MOI also incorporates two standard output channels such as is found on the OI.
Single motor control and two normal channels per unit, 20 A per output
Built-in circuit protection
IPX5 water ingress protection
Dimensions, WxHxD: 7-29/32"x5"x1-3/4" 200x128x45 mm
