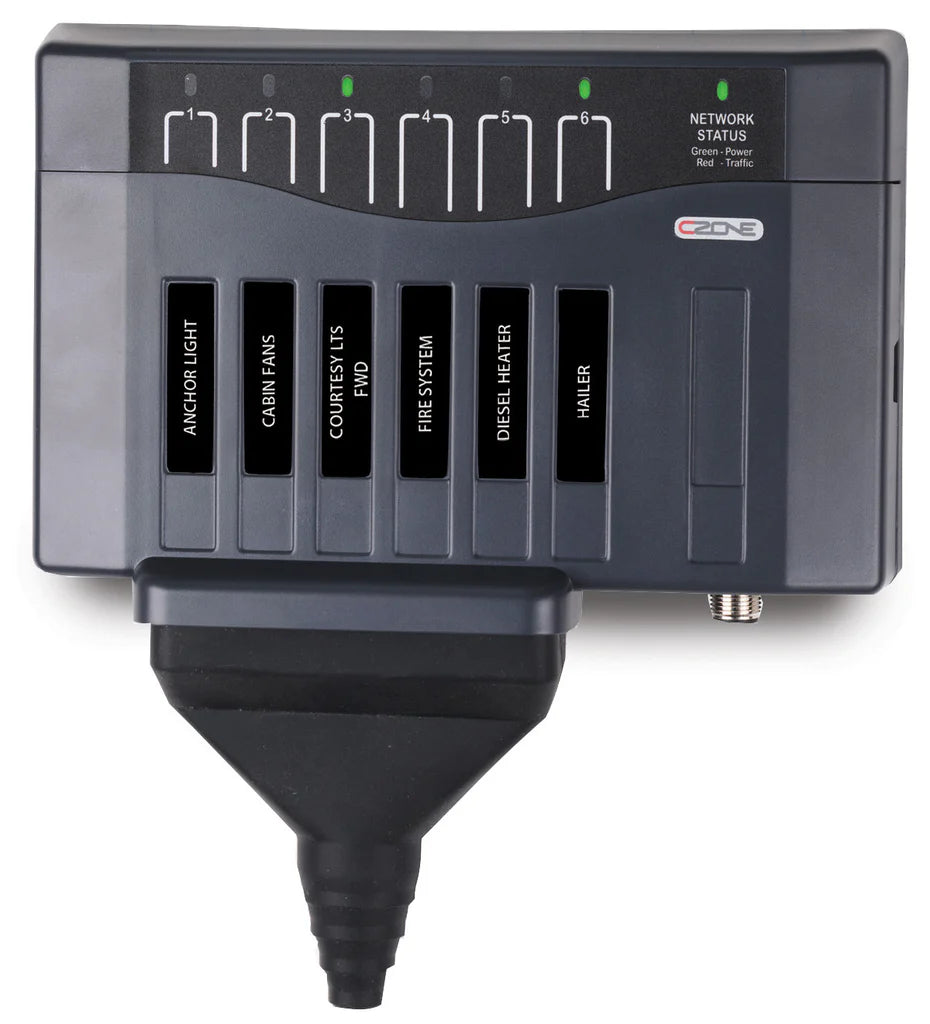

CZone Output Interface (OI) with Seal & Connector

Description

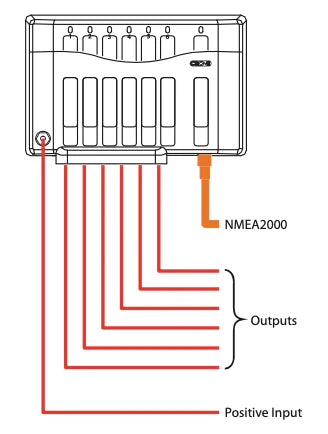

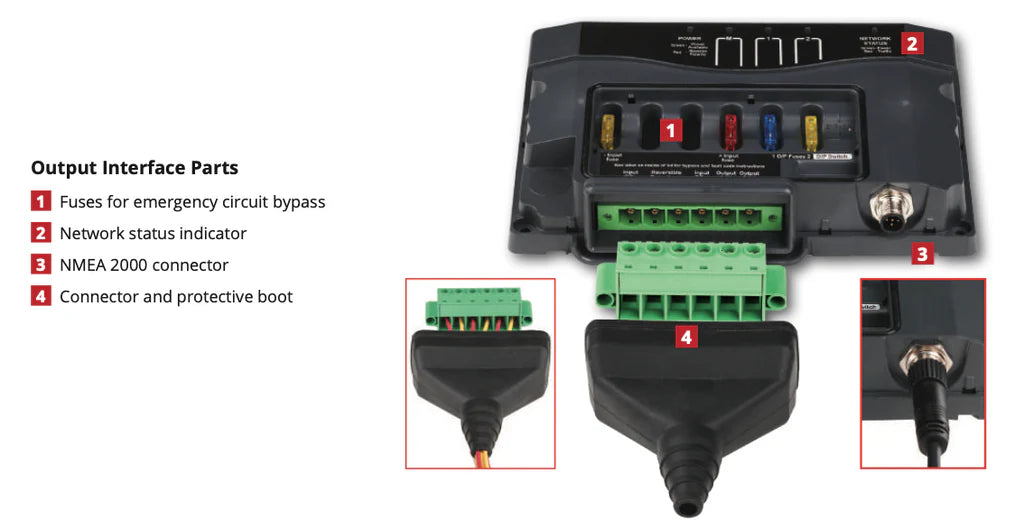

The Output Interface (OI) provides an intelligent replacement for traditional circuit breaker and fuse panels. It has 6x high power, robust output channels which provide the power supply, control and fusing for a circuit as well as integrating many other built in features such as timers and dimmers. Connection to the unit is simple: a large 6 way plug allows connections to cables of up to 16 mm2 (6AWG) in size, or multiple smaller conductors. No need for specialized crimp terminals and expensive crimp tools to be carried for terminations to CZone, just a blade screwdriver. A protective flexible boot offers protection to the connections from harsh environment conditions.

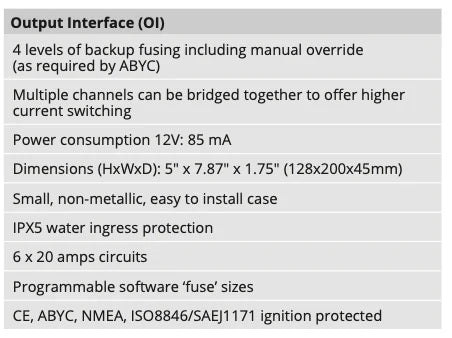

4 levels of backup fusing including manual override (as required by ABYC)

Multiple channels can be bridged together to offer higher current switching

Power consumption 12 V: 85 mA (standby 60 mA)

Dimensions, WxHxD: 7-29/32"x5"x1-3/4" 200x128x45 mm

Small, non metallic, easy to install case

6 x 20 amps circuits

IPX5 water ingress protection

Programmable software fuse sizes
