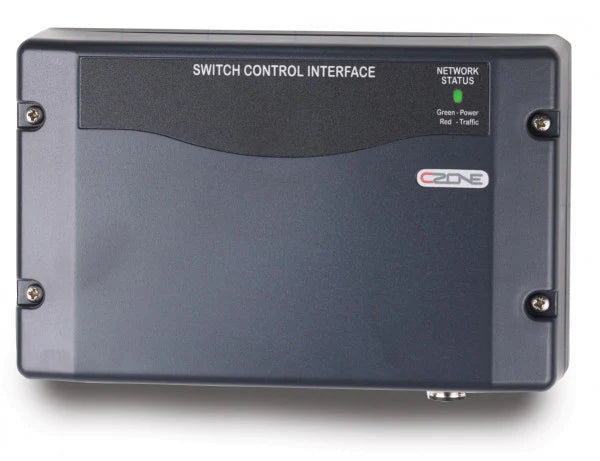

CZone Switch Control Interface (SCI) c/w seal

Description

The Switch Control Interface (SCI) provides an interface between the CZone network and traditional mechanical switches that manufacturers and users are familiar with. The SCI simplifies your wiring, supports your existing choice of switches, protects against failures and allows for expanding installation options.

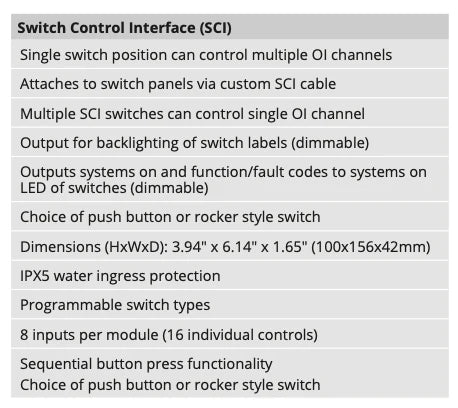

Single switch position can control multiple OI channels

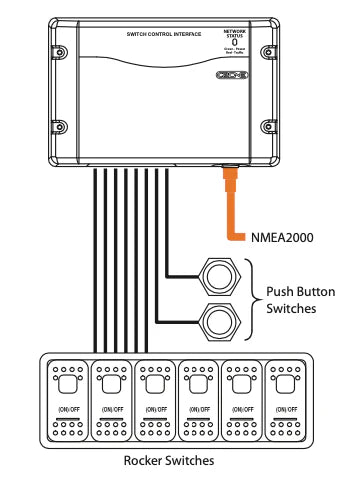

Attaches to switch panels via custom SCI cable
Multiple SCI switches can control single OI channel
Output for backlighting of switch labels (dimmable)
Outputs systems on and function/ fault codes to systems on LED of switches (dimmable)
Dimensions, WxHxD: 6-3/32" x 3-29/32" x 1-5/8" (156 x 100 x 42 mm)
IPX5 water ingress protection
8 Inputs per module (16 individual controls)
Programmable switch types
Sequential button press functionality
