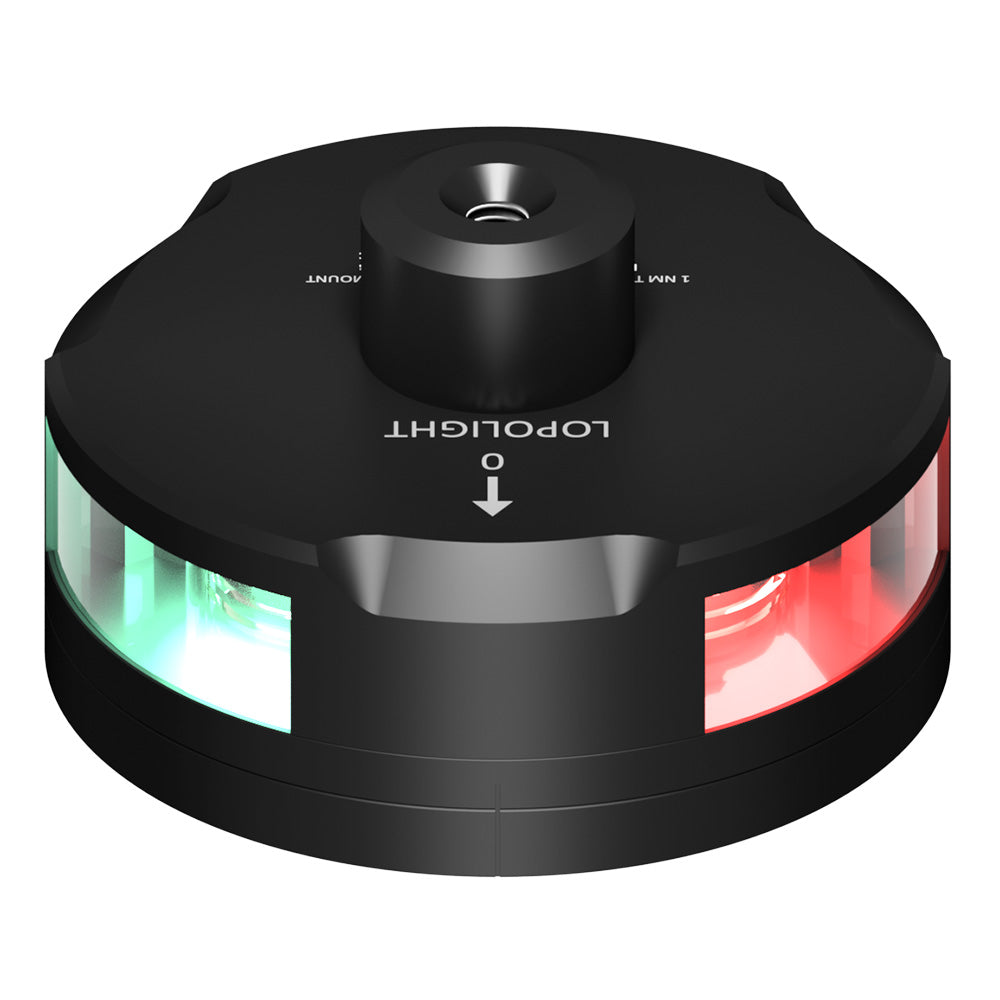

Lopolight Tri-Color Nav Light w/Windex Mount - 1NM - Black Housing w/FB Base

CayStorePart No.: LOPO1095

SKU:101-005W-FB-B
Regular price $687.96 USD
Sale price $687.96 USD Regular price
Sale Sold out
Shipping calculated at checkout.
  • Vendor:

    Lopolight

  • Type:

    Lighting | Navigation Lights

Description

Tri-Color Nav Light with Windex Mount - 1NM - Black Housing with FB Base

This black tri-color navigation light has a windex mount, is horizontally mounted, and has a one-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

  • Black anodized aluminum housing
  • 0.75m cable is included

Specifications:

  • Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
  • Mounting: Horizontal
  • EAN: 5704438042667
  • Min. Feed Wire Gauge: 0.5mm2 AWG22
  • Light Color: Red, green, and white
  • Visibility: 1NM
  • Included In the Package: 1 Navigation light, 0.75 meters shielded marine grade cable, and installation guide
  • IP rating: IP68
  • Connection: 0.75m cable
  • Current Consumption (mA @ 24VDC): 81
  • Current Consumption (mA @ 12VDC): 150
  • Dimensions Metric: Ø92,5mm x 36mm
  • Dimensions Imperial: Ø3.6" x 1.4"
  • Operating Temperature: -25 degrees C to 55 degrees C
  • Operating Voltage: 10-32VDC
  • Power Draw (W): 2.6
  • Vessel Size: Under 12 meters
