Mastervolt BattMan Lite Battery Monitor - 12/24V

CayStorePart No.: MAST8110

SKU:70405060
Regular price $208.86 USD
Sale price $208.86 USD Regular price
Sale Sold out
Shipping calculated at checkout.
  • Vendor:

    Mastervolt

  • Type:

    Electrical | Meters & Monitoring,Electrical | Battery Management

Description

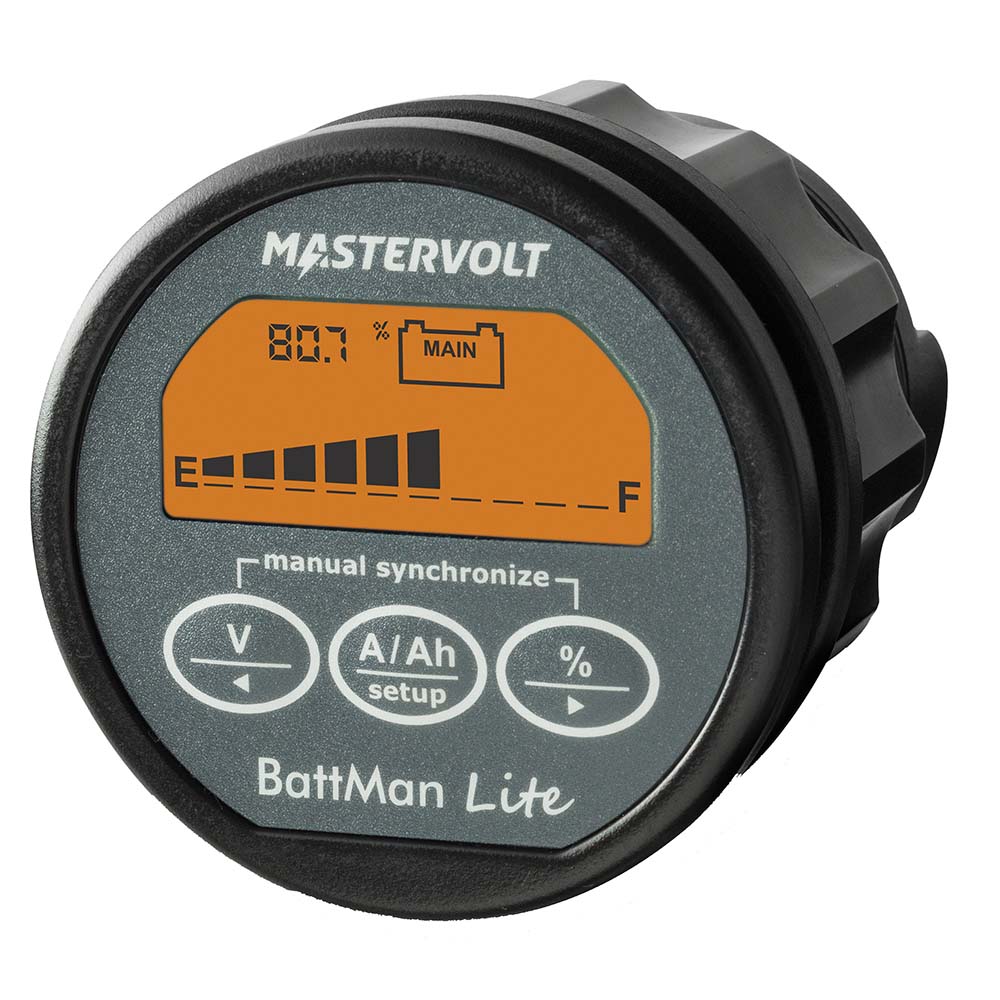

BattMan Lite Battery Monitor - 12/24V

Battery monitor, 12/24 V DC with large, splash-proof display (IP65) and power bar.

An affordable battery monitor that does exactly that: providing critical information about the status of your battery bank under all circumstances. Moreover, it will warn you when your battery bank is empty.

General Specifications:

  • Number of battery outlets: 2; service (fully), starter (voltage)
  • Display/read-out: Voltage, current, amp-hours, battery capacity in %
  • Languages on display: Universal
  • Built-in depth: 72.5 mm/2.9 inch
  • Dimensions: Ø 64 mm, depth 79 mm
  • Dimensions shunt, hxwxd: 87 x 45 x 35 mm/3.4 x 1.8 x 1.4 inch
  • Weight: 0.15 kg/0.3 lb

Technical Specifications:

  • Max. Ah capacity: 9999 Ah
  • Supply voltage: 9-35 V
  • Voltage range: 0-35 V
  • Current consumption (backlight off): 8 mA/12 V, 6 mA/24 V
  • Current consumption (backlight on): 30 mA/12 V, 18 mA/24 V
  • Voltage resolution: 0.1 V
  • Voltage accuracy: ± 0.3%
  • Shunt specification: 500 A/50 mV (service set)
  • Current measurement range: 0-500 A
  • Current accuracy: ± 0,4 %
  • Battery alarm contact: Yes, potential free
  • Remaining time indication: No
  • Historical data: No
  • MasterBus compatible: No
  • Connection cable (6-wire) necessary: Yes
  • Modular cable necessary: No
